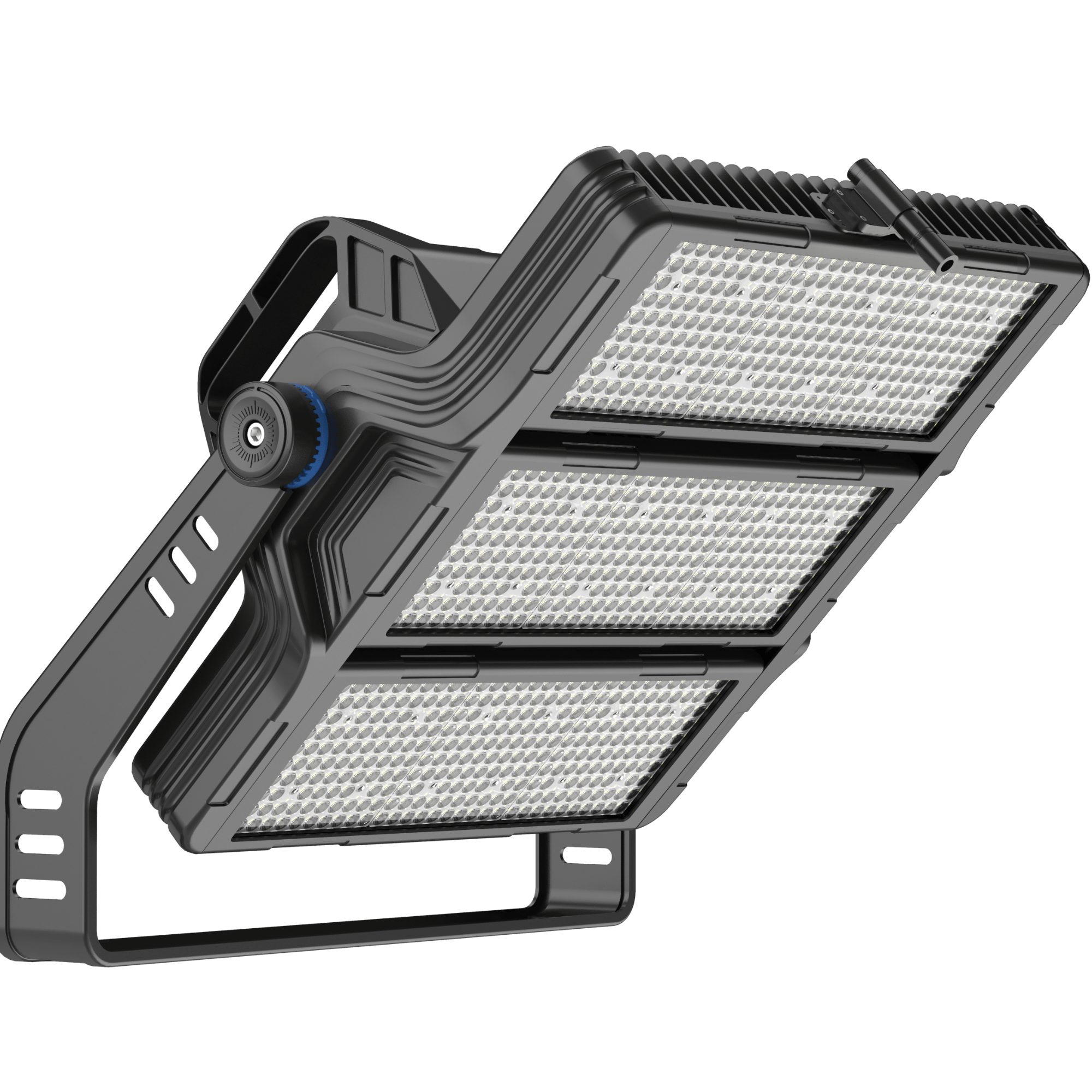

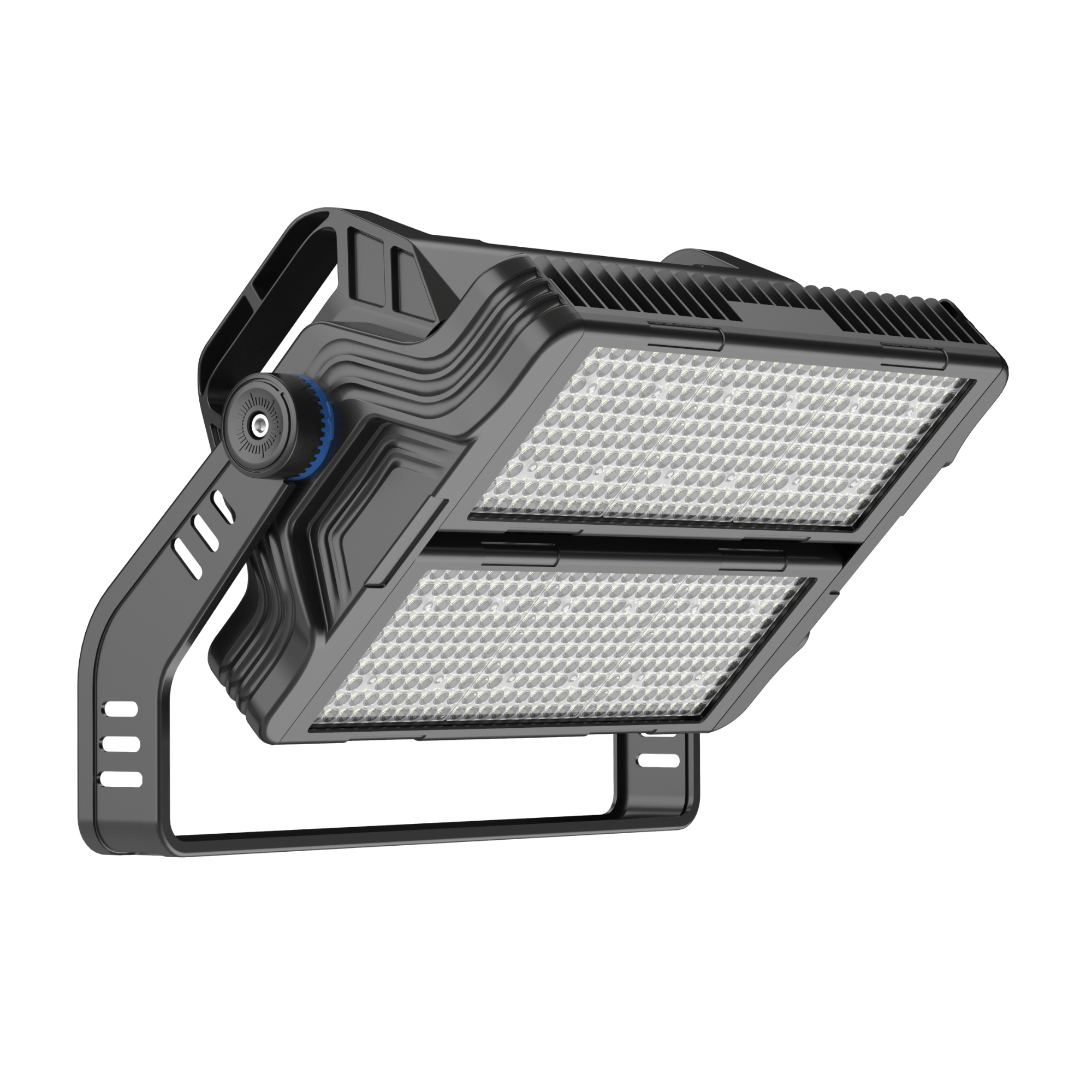

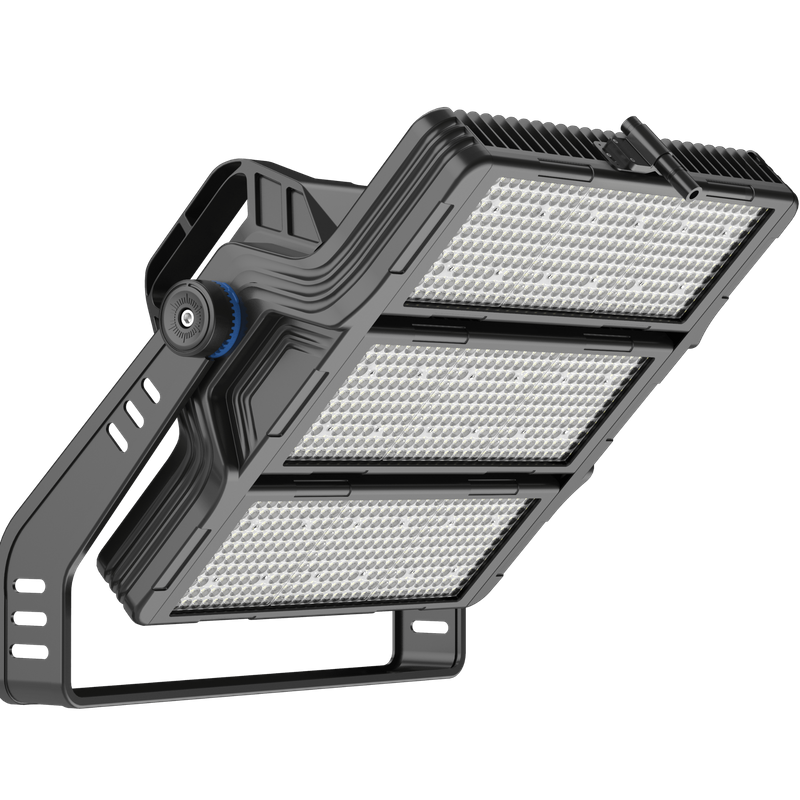

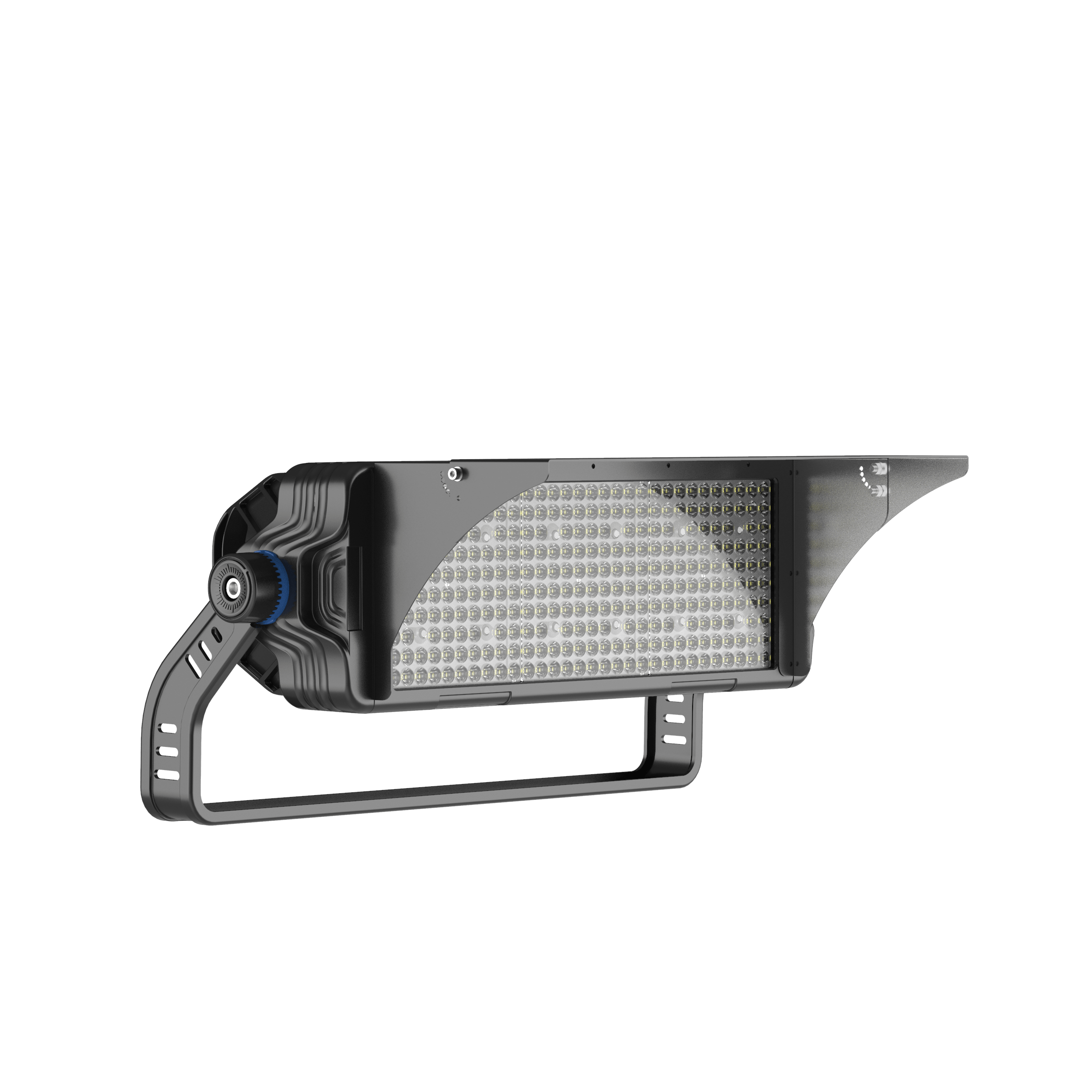

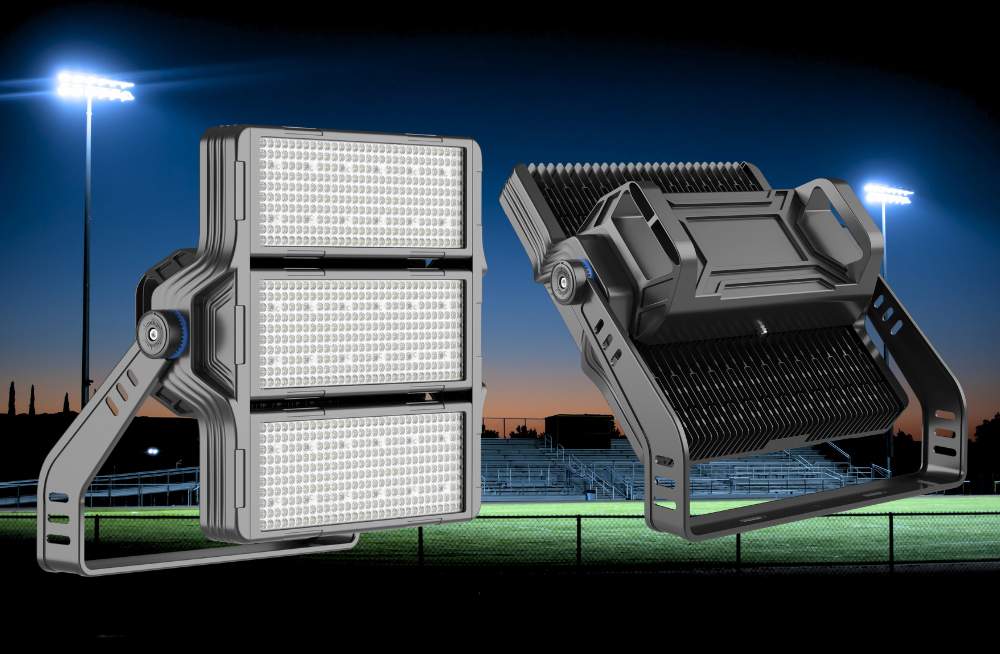

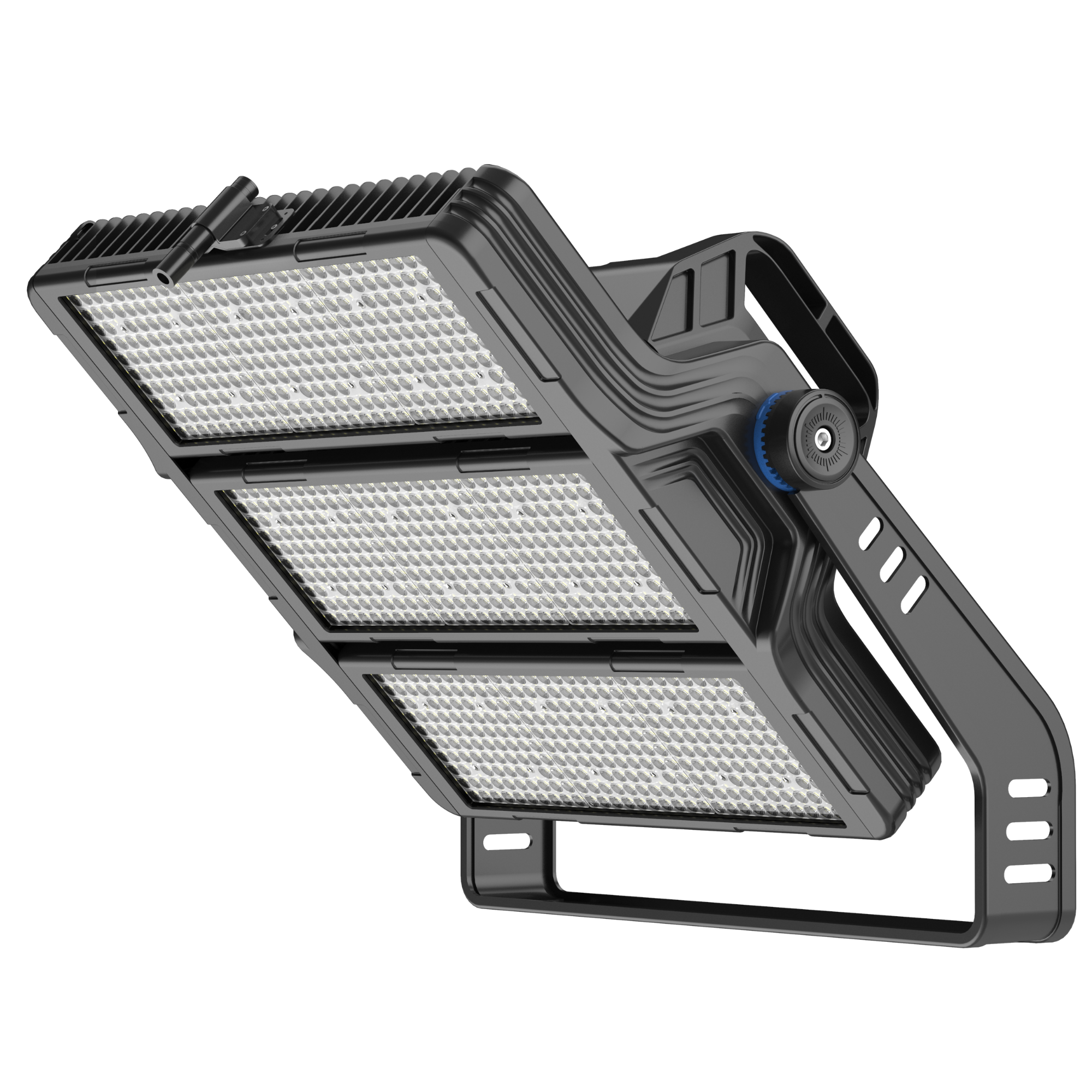

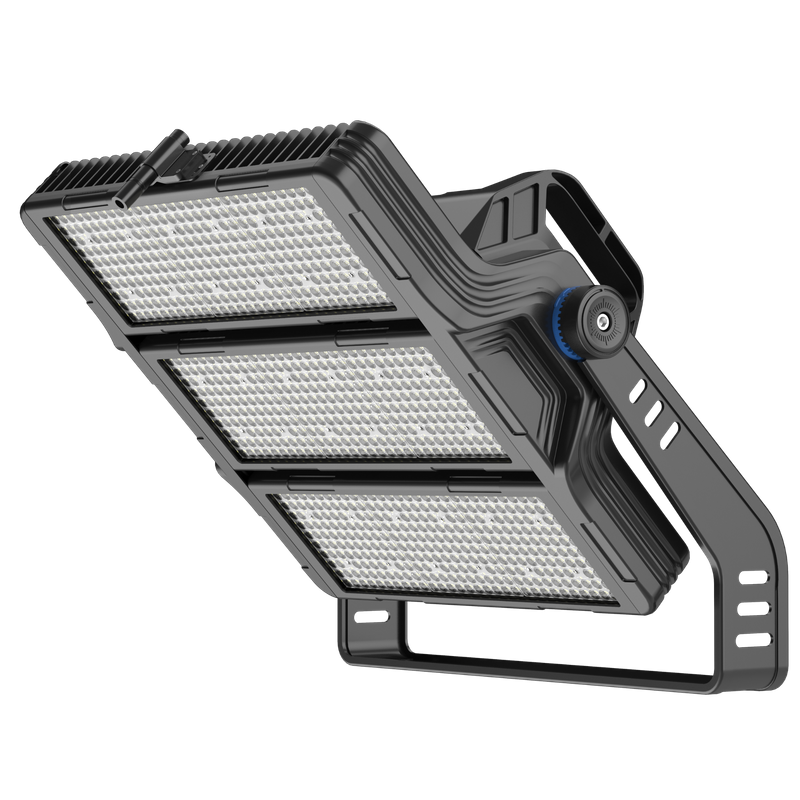

ARENAFLEX MODULAR LED FLOODLIGHT

The ARENAFLEX was designed to provide a direct replacement for 1500W HID flood lighting luminaries. This family of products offer industry leading, asymmentrica optics coupled with diode level glare control that physically block view of each diode and optic to eliminate glare in off axis viewing angles, achieving totally full cut-off light distribution without spillover trespassing.

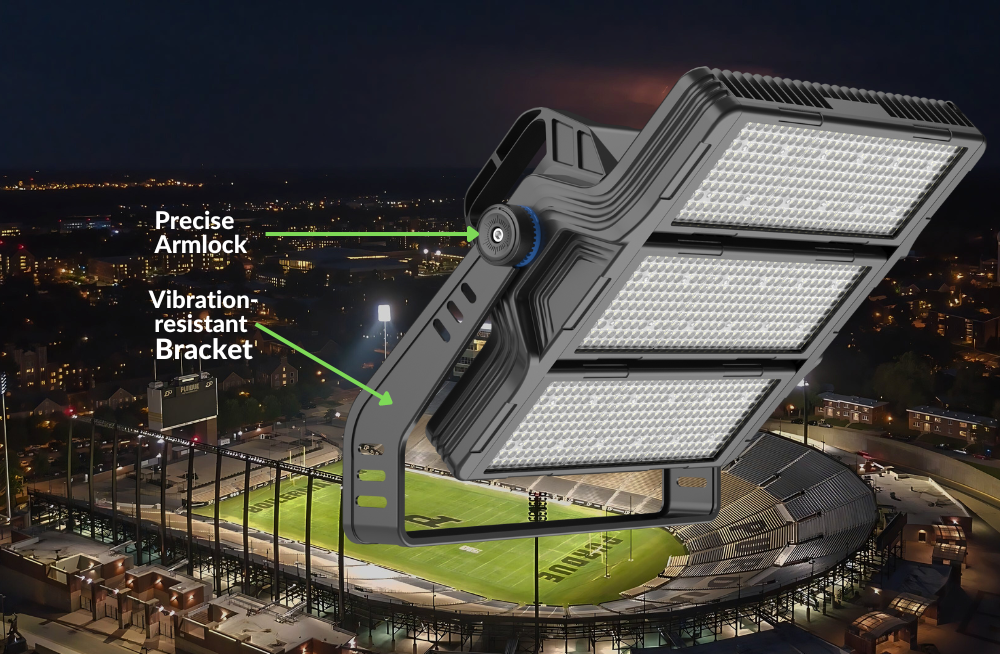

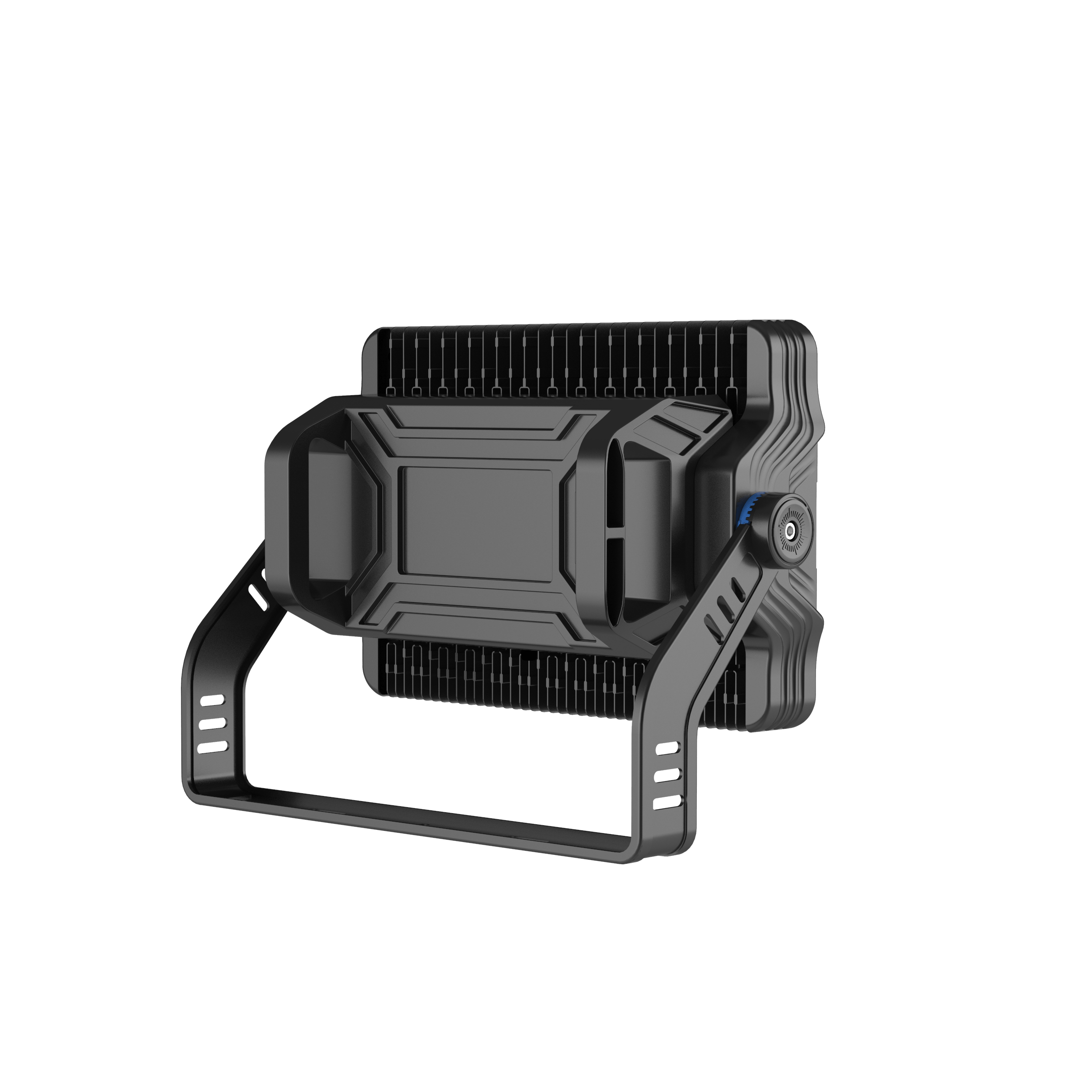

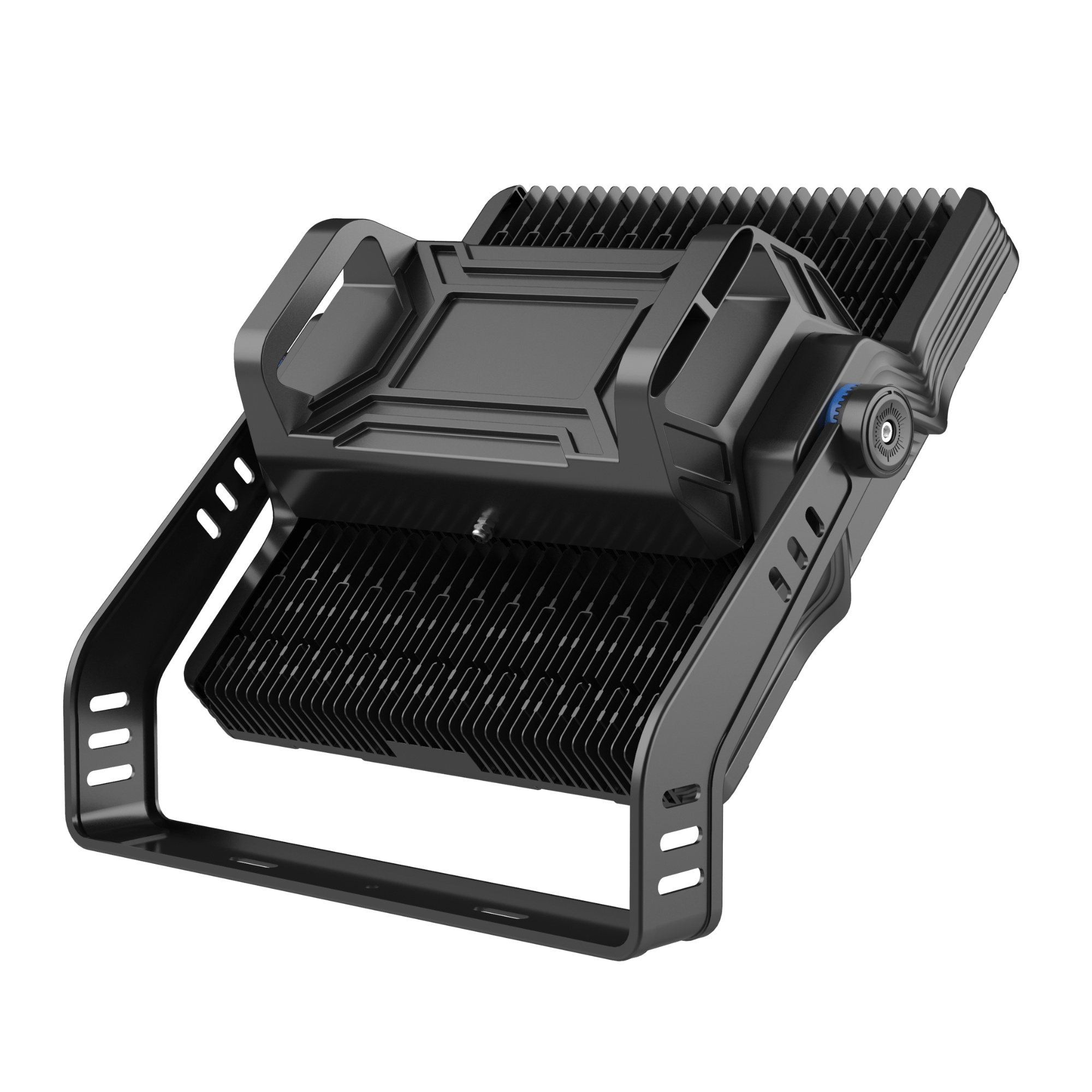

Both integrated and remote driver solutions are available. The driver enclosure is thermally isolated from the LED housing for segmented thermal management. The housing mounts to the support structure with a heavy metal bracket and armlocks with precise gauge to aim the fixture both horizontally and vertically, also the laser calibrator optional to make installation easier. The ARENAFLEX series of high power LED floodlight have been carefully engineered and tested to comply with IP66 and IK09.

Meanwell or other premium drivers used, which comes with surge protection in accordance with IEEEC62.41 6kV. The LED drivers have a minimum power factor of 0.95 with a Total Harmonic Distortion no greater than 20% with inrush current conforming to NEMA 410. Drivers come standard with 0-10V dimming leads as well as output tuning. The system includes a secondary surge protection system with supplementary coverage 20KV.
The total solution is ready for customized RGB color changing effect coupled with smart sports lighting control panel.

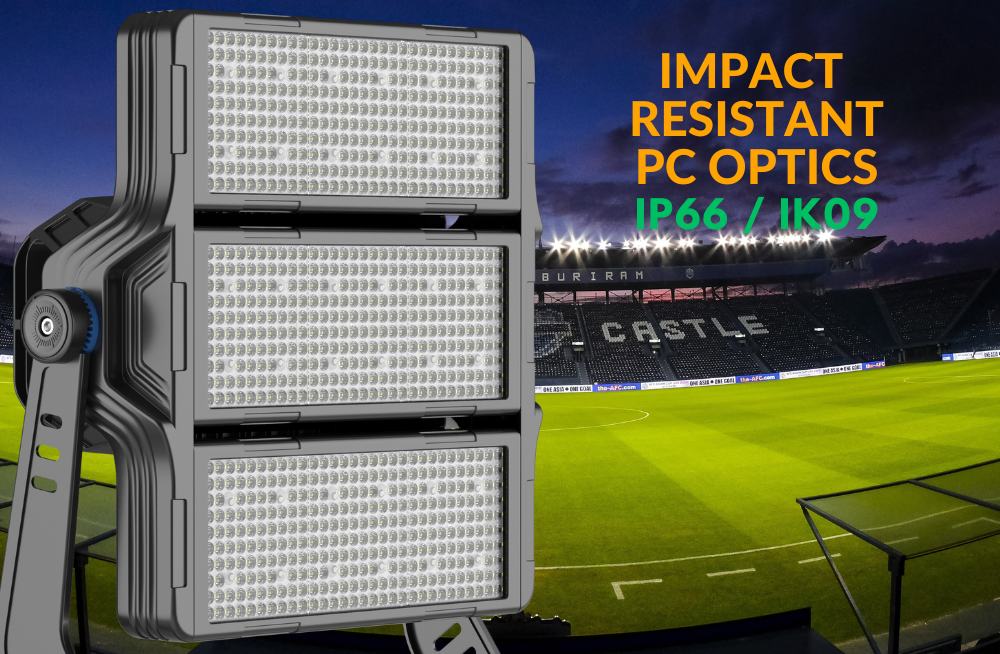

To generate a high visibility for the athletes, spectators and live broadcasting, the optics we use is made of superhigh quality PC with high transmittance. The optical array is held tight by the bezel to ensure precision location of each optic and provide superior vibration stability. Remote driver solution make sure the maintenance easy and drivers replaceable.
